Elbows & Bends
Precision-manufactured 45°, 90°, and 180° elbows and piping bends available in long-radius, short-radius, and custom-radius configurations from 1D to 25D. Ideal for directional changes in process piping, Shree Raj Steels supplies them in carbon, alloy, stainless, and exotic grades.
Explore Available Types & Styles
Select a product classification below to view extensive technical parameters, available material grades, dimensions, and custom requests.

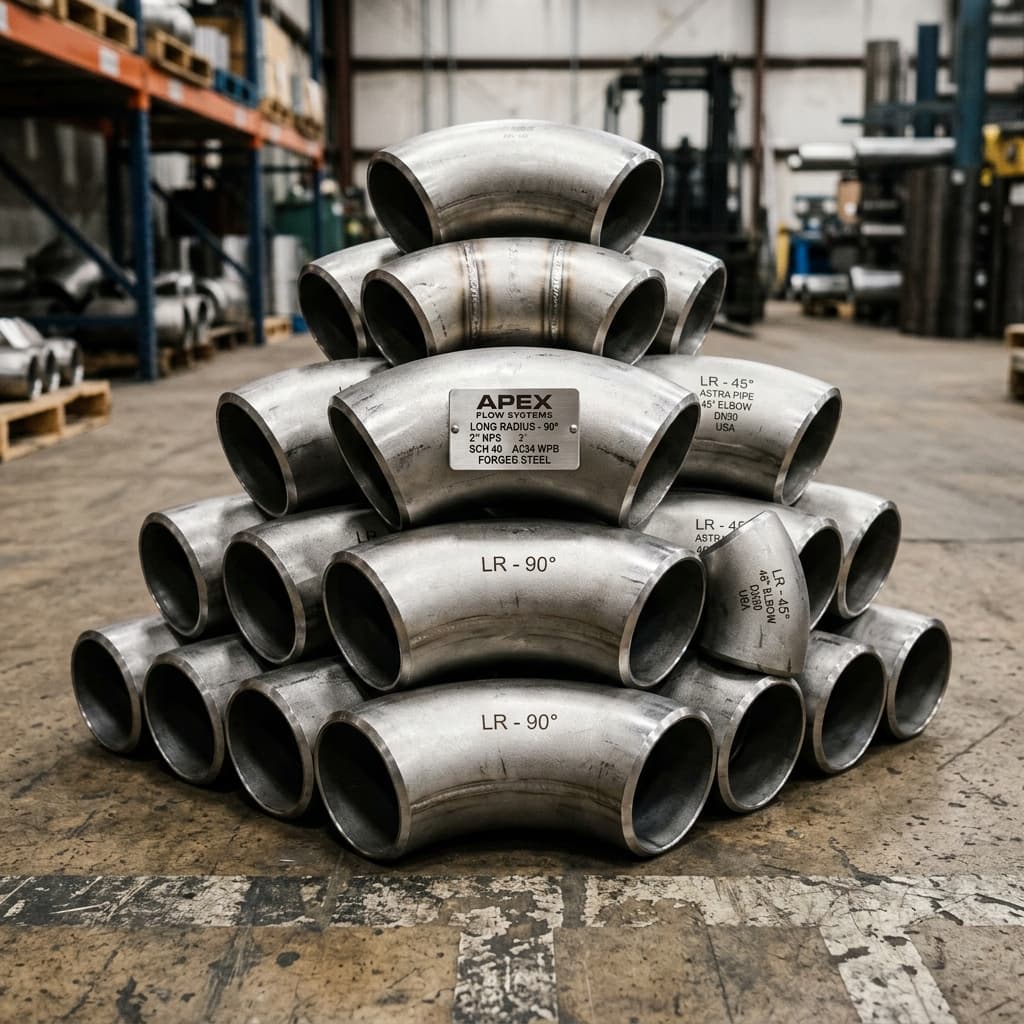

Long Radius (LR) Elbows
Long Radius (LR) elbows have a centre-to-end distance equal to 1.5 times the nominal pipe size (R = 1.5D), providing a gradual change in direction that minimises pressure drop and flow turbulence. They are the most commonly used elbow type in process piping and are the default specification unless otherwise stated.
Short Radius (SR) Elbows
Short Radius (SR) elbows have a centre-to-end distance equal to the nominal pipe size (R = 1D), used where space is limited and piping must make a tighter directional change. While they create a higher pressure drop than LR elbows, they are essential in compact piping layouts and low-pressure applications.
45° Elbows
45° elbows provide a moderate directional change in piping systems, used where a 90° turn is not required. They are commonly paired in sequence to achieve custom angles or to navigate around obstructions.
90° Elbows
90° elbows are the most widely used pipe fittings, enabling a perpendicular change of direction in piping systems. Available in both Long Radius (1.5D) and Short Radius (1D) configurations, they are essential components in virtually every piping system.
180° Returns (U-Bends)
180° returns, also known as U-bends, reverse the flow direction by 180 degrees in a single fitting. They are commonly used in heat exchanger headers, furnace coils, and piping systems where flow must be redirected back in the opposite direction.

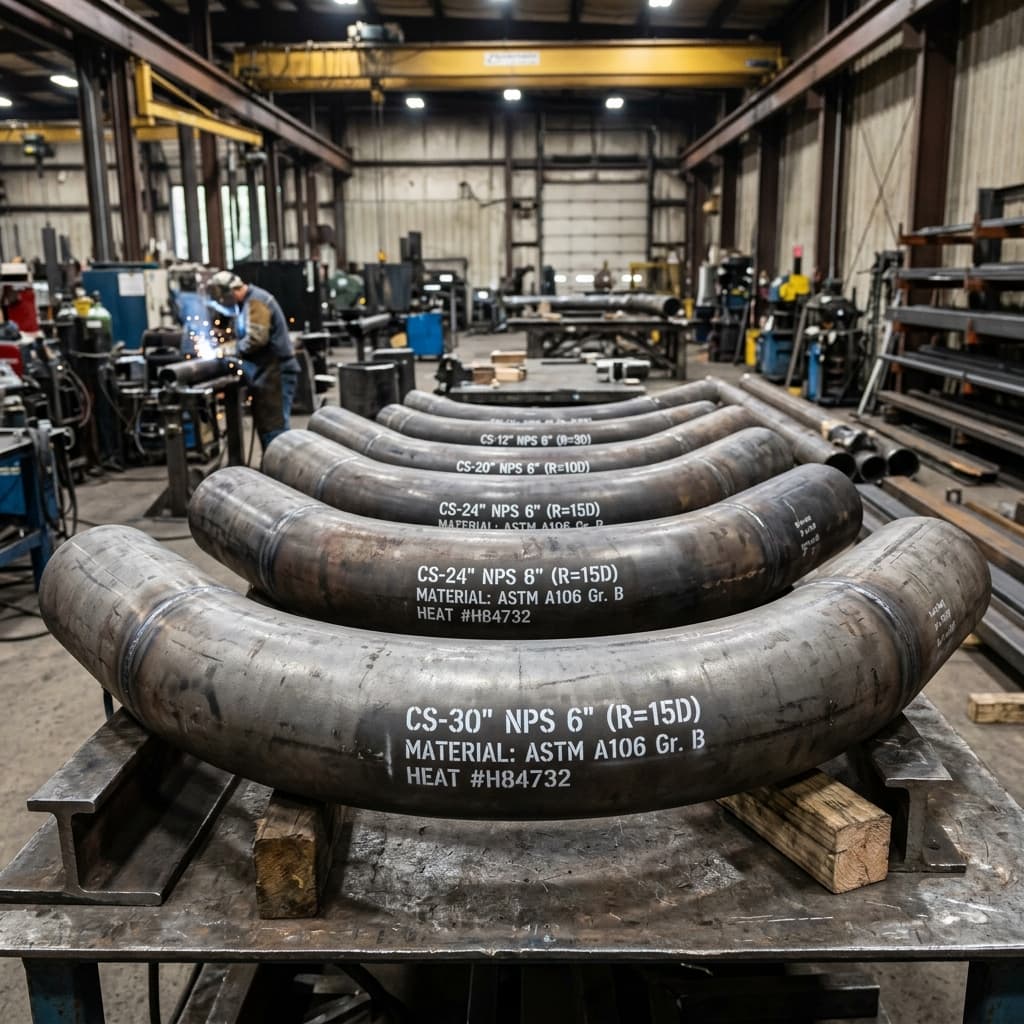

Piping Bends (3D–25D)
Piping bends are large-radius directional fittings with bend radii from 3D to 25D, manufactured by hot induction bending of straight pipes. They provide the smoothest flow transition and lowest pressure drop of any directional fitting, making them ideal for long-radius pipeline routing.
Miter Bends
Miter bends are fabricated fittings made by cutting and welding straight pipe segments at specific angles to create the desired bend. They are used in large-diameter, low-pressure applications where standard elbows are not economically feasible.
Available Material Standards
Shree Raj Steels manufactures products in all major piping materials, certified with full chemical and mechanical reports, trace codes, and corrosion testing.
Carbon Steel
- ASTM A234 WPB
- ASTM A234 WPC
Alloy Steel
- ASTM A234 WP1
- ASTM A234 WP2
- ASTM A234 WP5
- ASTM A234 WP9
- ASTM A234 WP11
- ASTM A234 WP22
- ASTM A234 WP91
- ASTM A420 Gr. WPL6
- ASTM A860 WPHY 42
- ASTM A860 WPHY 46
- + 4 more grades
Stainless Steel
- ASTM A403 WP 304
- ASTM A403 WP 304L
- ASTM A403 WP 304H
- ASTM A403 WP 316
- ASTM A403 WP 316L
- ASTM A403 WP 316Ti
- ASTM A403 WP 316H
- ASTM A403 WP 317L
- + 12 more grades
Exotic & Alloys
- Monel 400 / K500
- Inconel 600 / 625 / 800 / 825
- Hastelloy C22 / C276 / B2
Technical Specifications
| Seamless Size Range | 1/2" – 24" |
|---|---|
| Welded Size Range | 1/2" – 60" |
| Angles | 45° / 90° / 180° |
| Radius | 1D (Short Radius) to 25D (Long Radius) |
| Wall Thickness | SCH 5S – XXS |
Product Scope
Surface Coatings
Manufacturing Standards
Inspection & Quality
We welcome all leading Third-Party Inspection (TPI) agencies including **SGS, TUV, LLOYDS, Bureau Veritas (BV), DNV, EIL, IRS, and IRS**.
Dimensions & Weights
Need standard chart sheets with dimensions, schedules, wall thicknesses and weights?
View Technical SheetsIndustrial Supply Experts Since 2019
Backed by over 40 years of collective industry experience in pipes and fittings, Shree Raj Steels (SRS) delivers reliable pipeline solutions worldwide. From standard oil-gas networks to complex chemical processes, our products withstand the test of extreme pressures and high corrosion.
PED 2014/68/EU Certified
Fully certified for pressure equipment systems, conforming to European safety guidelines.
1500+ Tons Ready Stock
Substantial raw materials (400+ tons) and finished product inventory ready for immediate shipment.
Pan-India & Global Delivery
Fast transport logistics from our Navi Mumbai hub directly to ports and industrial sites.
100% Traceability
Every single fitting is laser marked and traceable back to the raw material heat charge.
